Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Nonlinearity : ≤0.1%

Bias repeatability : ≤0.3°/s

Full Scale : ±200(optional)°/s

Bias : ≤±0.1°/s

Bias stability : ≤10°/s

Brand Name : Gyrosens

Model Number : GSIMU001M

Certification : CE

Place of Origin : china

MOQ : 1pcs

Payment Terms : MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Contact Now

GSIMU001M Universal Digital Inertial Measurement Unit
The GSIMU001M Inertial Measurement Unit is a high-performance, cost-effective solution for navigation, control, and dynamic measurement applications. Featuring a sealed design, this unit delivers precise angular velocity and acceleration measurements even in demanding environmental conditions.
Key Features
  • Low cost with compact dimensions
  • Wide operating temperature range (-40°C to +85°C)
  • Broad power input compatibility with digital output
  • Robust construction for enhanced reliability
  • Low power consumption and fast startup
  • Wide bandwidth for responsive performance
Applications
Automotive electronics
Aircraft guidance and control
Attitude reference systems
Platform stabilization
Robotics
Antenna stabilization
Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability
Technical Specifications
Power Supply Parameters
Supply voltage 5V DC ±5%
Power consumption ≤0.5W @5V DC
Product Performance
Size Ф39.5*22mm, Ф39.5*28.5mm, 26.5*26.5*23.5mm
Weight ≤100g
Heading ±180°
Roll ±180°
Pitch ±90°
Pitch Accuracy 0.3°
Gyroscope
Full Scale ±200° (optional)/s
Bias ≤±0.1°/s
Bias stability ≤10°/s
Bias repeatability ≤0.3°/s
Nonlinearity ≤0.1%
Accelerometer
Full Scale ≤0.3°/h
Bias ≥500Hz
Bias stability 170g±10g
Nonlinearity ≤0.1%
General
MTBF 10Kh
Output Interface Digital RS422
Update rate (user settable) 200 Hz@460800
Environmental Specifications
Operating temperature -40°C to +70°C
Storage temperature -55°C to +85°C
Vibration 6 g @ 20-2000 Hz
Shock 8000 g, 0.5 ms, 1/2 Sine

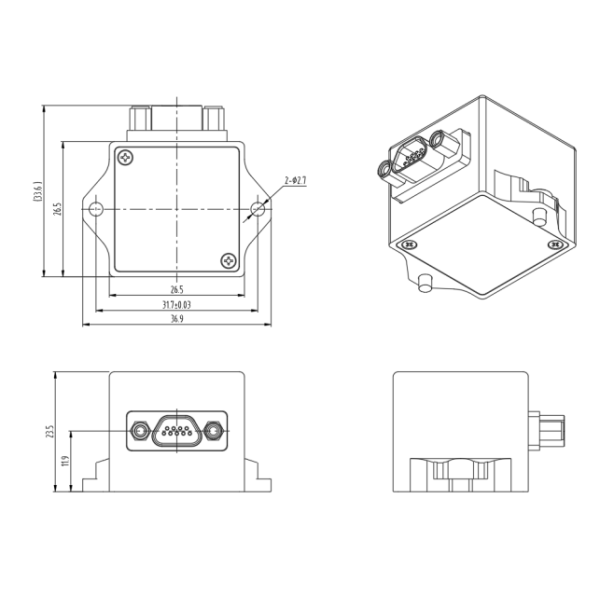

Dimensions
Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability
