Brand Name : KACISE
Model Number : KGD-ATRS-316
Certification : CE
Place of Origin : CHINA
MOQ : 1PCS
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 1000 Piece/Pieces per Week negotiable
Delivery Time : 5-8 work days
Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available
Measurement Principle : NDIR Dual - channel + MOX + Light Scattering
Measured Components : PM2.5 + CO2 + CO
Communication Method : CAN
Communication Parameter : 500k
Response Time : T90 ≤ 15s
Resolution : CO2/CO: 1ppm;PM: 1μg/m³

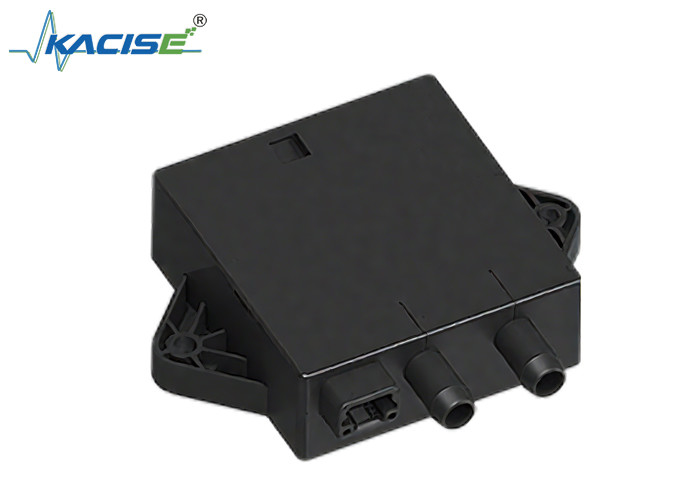

Battery Thermal Runaway Monitoring Sensor KGD - ATRS - 316
Product Introduction
The KGD - ATRS - 316 battery thermal runaway monitoring sensor can effectively monitor indicators such as the concentration of CO₂, CO, and particulate matter released before the triggering of battery thermal runaway. It transmits the measurement signals to the BMS via CAN or LIN communication (customizable). It features accurate measurement, fast response time, low cross - interference, low power consumption, long service life, and high reliability.
Product Features
Technical Parameters
Items | Details |
Measurement Principle | NDIR Dual - channel + MOX + Light Scattering |
Measured Components | PM2.5 + CO2 + CO |
Communication Method | CAN |
Communication Parameter | 500k |
Measuring Range | CO2: 0 - 10000ppm |
CO: 0 - 1000ppm (Can display up to 10000ppm) | |
PM: 0 - 5mg/mATRS | |
Response Time | T90 ≤ 15s |
Measurement Accuracy | CO2: ±200ppm or ±20% of the reading (0 - 5000ppm, -20 °C - 60 °C) |
CO: ±40ppm or ±30% of the reading (take the larger value) | |
PM: ≤100ug/mATRS: ±15ug/mATRS; >100ug/mATRS: ±15% reading (-40 °C - 70 °C) |
![]() |
KGD ATRS 316 Battery Thermal Runaway Monitoring Sensor with Measurement Principle NDIR Dual channel MOX Light Scattering Images |
