High Accuracy KGD MQ 518 Laser Trace Moisture Gas Analyzer with Measurement Range 0 50ppm 6000ppm

Brand Name : KACISE

Model Number : KGD-MQ-518

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Measured Component : H₂O

Measurement Principle : TDLAS

Measurement Range : 0 - 50ppm ~ 6000ppm

Measurement Accuracy : ±2%F.S.

Resolution : 0.1 ppm

Repeatability : ≤1.5%F.S.

Contact Now

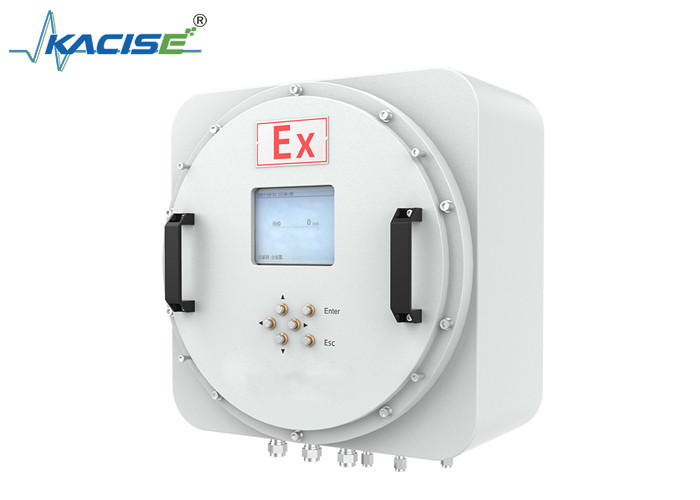

KGD - MQ - 518 Laser Trace Moisture Gas Analyzer

Product Introduction

The KGD - MQ - 518 Laser Trace Moisture Gas Analyzer is a high - performance optical device for measuring gas humidity. It has advantages such as high measurement accuracy, fast response speed, high sensitivity, stability and reliability. It features alarm output, analog signal output, and rich communication interfaces, and supports the display of humidity volume ratio and dew - point value. It is suitable for dew - point detection in cryogenic processes of natural gas liquid (NGL) recovery units and in the production of liquefied natural gas (LNG).

High Accuracy KGD MQ 518 Laser Trace Moisture Gas Analyzer with Measurement Range 0 50ppm 6000ppm

Product Features

  • Customizable measurement range
  • Based on TDLAS principle, long service life, fast response
  • Accurate measurement, high sensitivity, stable and reliable
  • No refrigeration required, measurement unaffected by background gas
  • Supports multiple output methods including analog and digital signals
  • High explosion - proof and protection grades

Technical Parameters

Measured Component H₂O
Measurement Principle TDLAS
Measurement Range 0 - 50ppm ~ 6000ppm
Measurement Accuracy ±2%F.S.
Resolution 0.1 ppm
Repeatability ≤1.5%F.S.
Explosion - proof Grade Ex db IIC T6 Gb / Ex tb IIIC T80℃ Db
Protection Grade IP66
Ambient Temperature -10℃ - 50℃
Working Humidity 0 - 98%RH (non - condensing)
Working Pressure Inlet: 140 - 310kPa; Gas cell: 800 - 1200mbar
Working Power Supply 24 VDC ±20% or 100 - 240 VAC ±10%, 50/60Hz, 10W
Communication Interface RS - 485, 4 - 20mA, Modbus, Ethernet
External Dimensions (LWH) 400400250(mm)
Weight 36kg
