KGD - WQ - 506 Laser Spectroscopy Engine Emission Analysis System

Brand Name : KACISE

Model Number : KGD-WQ-506

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Measurement Principle : TDLAS

Response Time : T10 - 90 < 2.5s

Accuracy : ≤ ±2.0% MRS or ≤ ±0.3% F.S.

Repeatability : ≤ ±0.5% F.S.

Drift : ≤ ±1% F.S./8h

Operating Environment : Ambient temperature: 5 - 40°C; Relative humidity: ≤ 80%RH

Contact Now

KGD - WQ - 506 Laser Spectroscopy Engine Emission Analysis System

Product Introduction

The KGD - WQ - 506 Laser Spectroscopy Engine Emission Analysis System is integrated with a Tunable Diode Laser Absorption Spectroscopy (TDLAS) high - temperature sensor module. It can dynamically and accurately measure the volume concentrations of NH₃ and N₂O in engine exhaust samples under high - temperature (190°C) and high - humidity conditions. It is suitable for type - approval tests and related research and development tests that comply with current major vehicle emission standards and the Euro 7 emission standard.

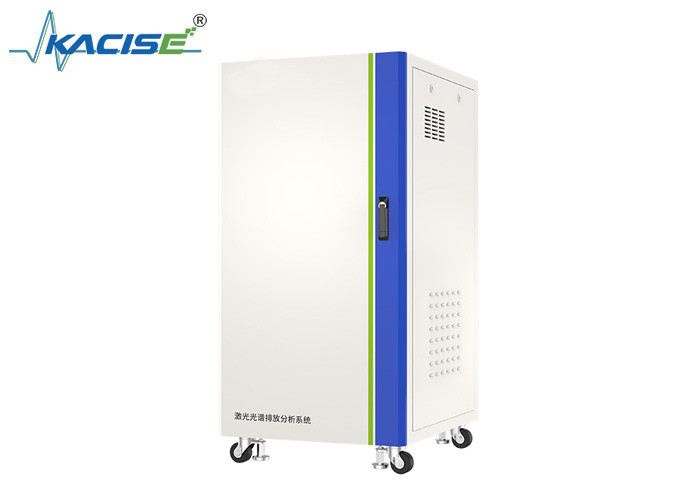

KGD - WQ - 506 Laser Spectroscopy Engine Emission Analysis System

Product Features

  • Adopts TDLAS patented technology, featuring high sensitivity and strong selectivity.
  • The high - temperature - resistant gas chamber design avoids the condensation loss of NH₃, improving the measurement accuracy and stability.
  • The small - volume multi - pass reflective gas chamber design enhances the measurement response speed.

Technical Parameters

Gas Component NH₃ N₂O
Measurement Principle TDLAS TDLAS
Minimum Range 0 - 50 ppm 0 - 100 ppm
Maximum Range 0 - 2000 ppm 0 - 2000 ppm
Response Time T10 - 90 < 2.5s T10 - 90 < 2.5s
Accuracy ≤ ±2.0% MRS or ≤ ±0.3% F.S. ≤ ±2.0% MRS or ≤ ±0.3% F.S.
Linearity Determination coefficient: ≥ 0.998; Standard deviation: ≤ 1% F.S.; Determination coefficient: ≥ 0.998; Standard deviation: ≤ 1% F.S.;
Slope: 0.99 - 1.01; Intercept coefficient: ≤ 0.5% F.S. Slope: 0.99 - 1.01; Intercept coefficient: ≤ 0.5% F.S.
Repeatability ≤ ±0.5% F.S. ≤ ±0.5% F.S.
Drift ≤ ±1% F.S./8h ≤ ±1% F.S./8h
Operating Environment Ambient temperature: 5 - 40°C; Relative humidity: ≤ 80%RH Ambient temperature: 5 - 40°C; Relative humidity: ≤ 80%RH
