Panel Mounted Remote Display Ultrasonic Flow Meter With Double Power Supply

Name: Panel Mounted Remote Display Ultrasonic Flow Meter With Double Power Supply
Brand: KACISE
Price: 1 USD

China Panel Mounted Remote Display Ultrasonic Flow Meter With Double Power Supply wholesale

Brand Name : KACISE

Model Number : KUF2000

Certification : CE

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000 sets per month

Delivery Time : 3-5 work days

Packaging Details : one carton for one set

Power Supply : DC8~36V or AC85~265V

Pipe Diameter : 15~6000mm

Signal output : 4-20mA, OCT pulse, Relay

Communication : RS485

Pipe material : Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed

Dimension : 170*180*56mm

Temperature : -30~160℃

Medium : Water, sea water, waste water, oil, chemicals (alcohol, acids, etc.), beverage (beer, wine, etc.)...

Contact Now

Panel Mounted Remote Display Ultrasonic Flow Meter with Double Power Supply

Introduction

KUF2000 series ultrasonic flow meter usually is used in long-term measurement at field. It has three types of sensor to measure the pipe flow: clamp on type, insertion type and inline pipe type. The KUFS2000B flow meter is designed to be installed in instrument panel. And it can measure heat if add temperature sensor. Also SD card can be added for large quantity data saving.
Clamp on type: The sensors clamp on to the outside of pipes and do not come in contact with the internal liquid. And all the models can become energy meters when connecting to temperature sensors. KUF2000 Series Clamp On Ultrasonic Flowmeter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe.
Insertion type: Only two installation holes are needed on the pipe, user can install the insertion type sensors. By using the hole making tool, the no stop flow installation can be realized. Sensors contact to the fluid directly, the measurement is stable and reliable.
Inline pipe type: DN15-32 pipes uses π shape inline pipe sensor, DN40 and above uses standard inline pipe sensor. The inline sensors has the advantages of low starting flow rate, high measurement accuracy and no pressure loss.

Parameters

Host part	Principle	Ultrasonic time gap
	Accuracy	±1%
	Display	2×20 character LCD with backlight, support the language of Chinese, English and Italy Convertor dimension:17018056cm
	Signal output	1 way 4~ 20mA output, electric resistance 0~ 1K,accuracy0. 1%
		1 way OCT pulse output( Pulse width 6 ~ 1 0 0 0 ms,default is 2 0 0 ms)
		1 way Relay output
	Signal input	3 way 4~ 20mA input, accuracy 0. 1%,acquisition signal such as temperature, press and liquid level
	Signal input	Connect the temperature transducer Pt100, can finish the heat/energy measurement
	Data interface	Insulate RS485 serial interface, upgrade the flow meter software by computer, support the MODBUS, METER-BUS etc.
Cable	Twisted-pair cable, generally, the length under 50 meters; Select the RS485 communication. The transmission distance can over 1000m.
Pipe Condition	Pipe material	Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
	Pipe Diameter	15~6000mm
	Straight length pipe	Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.
Medium	Type of Liquid	Water, sea water, waste water, oil, chemicals (alcohol, acids, etc.), plant effluent and other liquids
	Temperature	-30~160°C
	Turbidity	10000pm not so much baubles
	Flow speed	0~±10m/s
Environment	Temperature	Host: -20~60°C; Sensor: -30~160°C
Environment	Humidity	Host: 85%RH; Flow sensor: IP68, less than 2m under water
Power supply	DC8~36V or AC85~265V( optional)
Consumption	1.5W

Panel Mounted Remote Display Ultrasonic Flow Meter With Double Power Supply
Sensor Selection

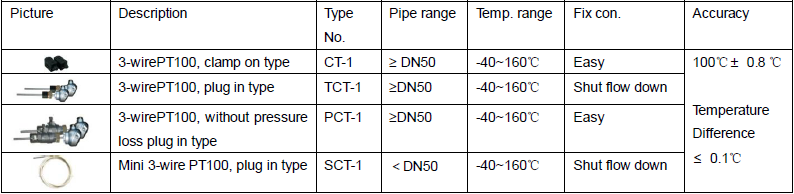

Optional Temp. sensor

Ordering Infomation

Panel Mounted Remote Display Ultrasonic Flow Meter With Double Power Supply
